Callouts are the navigation system of a drawing set
A construction document set is not read front to back like a book. Contractors jump from a plan to a wall section, from a section to an enlarged detail, from a detail to a schedule. The callout is the link that makes those jumps reliable. When a detail bubble says "5/A5.02", it is a promise: detail five lives on sheet A5.02, and it will be there. Break that promise once and the field stops trusting your set.
At Cadeonn we treat callouts as a wayfinding system, not annotation afterthoughts. Every reference is a node in a graph that must resolve. The conventions that govern these graphics are codified by the National CAD Standard, and they exist precisely so that any contractor can read any architect's set without a translation key.

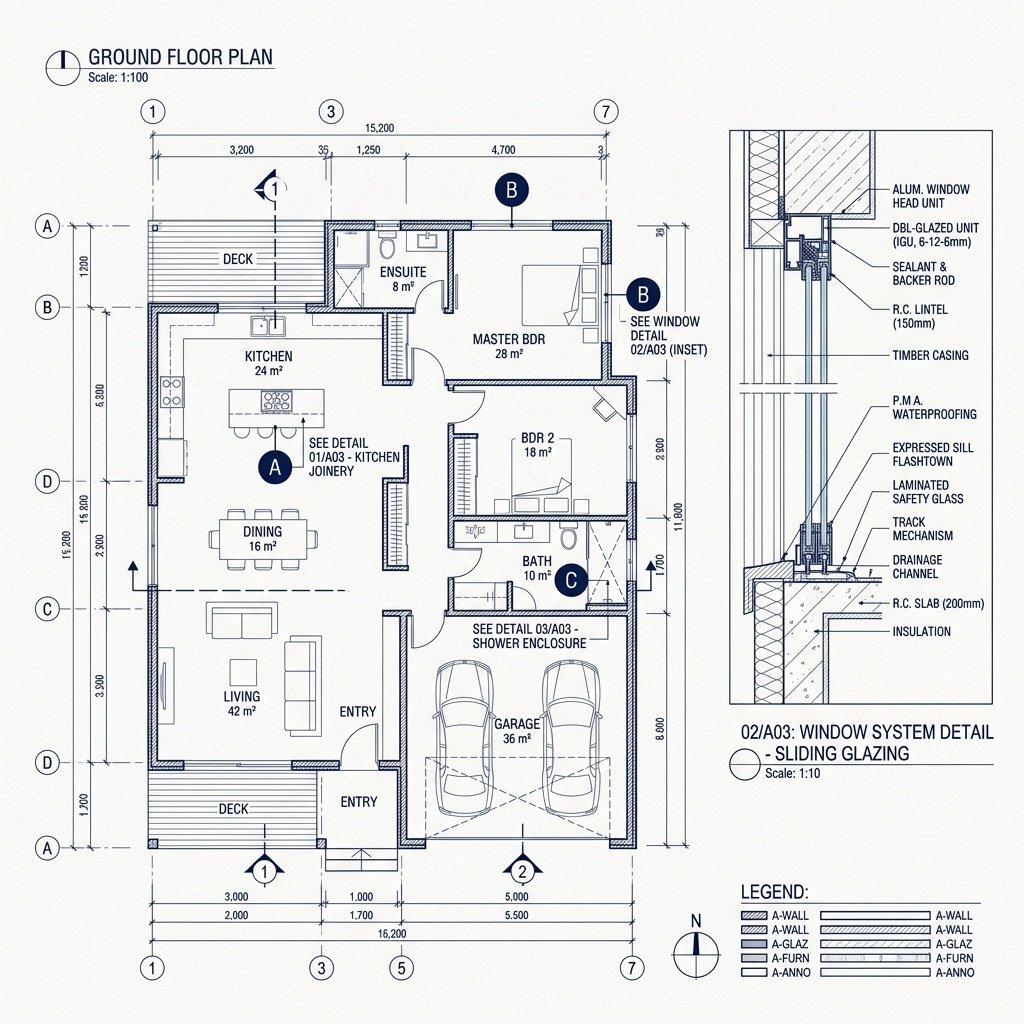

Reference bubbles, detail tags, and section markers
The graphic vocabulary is small but precise. A detail bubble carries the detail number over the sheet number. A section marker adds a cut line and a direction-of-view arrow. An elevation tag points its arrow at the face being drawn. Each symbol tells the reader two things at once: what they are looking at, and where to go next.
A callout that does not resolve is worse than no callout at all — it sends a builder hunting for a detail that was never drawn.
The discipline is in consistency. The same bubble size, the same text height, the same numbering logic on every sheet. That uniformity is what lets a reader move at speed. It is the same care we bring to our construction documentation services, where the callout layer is reviewed independently of the geometry.
Keynotes that keep the drawing face clean
Where reference bubbles point to other drawings, keynotes point to a coded list of notes. Instead of scattering repeated text across a plan, a keynote places a short code — say "06" — that resolves to a single authoritative legend on the same sheet. The drawing stays legible, and the note is written once, so it can never contradict itself between two places.
Keynote systems pair naturally with disciplined layering and specification language. For more on how the documentation layer connects to the spec book, see our piece on keeping specifications and drawings in sync, and our overview of CAD standards that scale.
Resolving every callout to a real sheet
- Build the sheet index first so every callout has a destination before it is placed.
- Use live references in your BIM or CAD tool so renumbering propagates automatically.
- Run a callout audit before each issue — every bubble must point to an existing detail.
- Keep keynote legends per sheet, not project-wide, to avoid stale codes.
- Flag and remove orphaned details that no longer have a parent callout.
Professional standards bodies such as the American Institute of Architects publish layering and documentation guidance that underpins these habits. Strong callouts also depend on a strong index — our guide to building a bulletproof sheet index covers the foundation.
Frequently asked questions
What is a detail callout in construction documents?
A detail callout is a graphic reference — usually a bubble or tag — that points from a plan, section, or elevation to an enlarged detail elsewhere in the set, naming both the detail number and the sheet where it is drawn so the reader can navigate without searching.
How are keynotes different from reference bubbles?
Reference bubbles point to other drawings, while keynotes point to a coded list of notes. Keynotes keep the drawing face clean by replacing repeated text with short numbers that resolve to a single authoritative legend, reducing contradiction across sheets.
